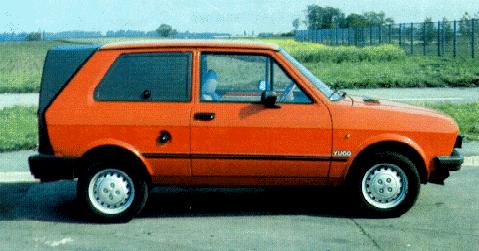

Yugo Koral Van

This is a the van version of Yugo Koral 45/55.



Technical datas:

Body: Van, 2 seats
Length: 3490 mm
Width: 1542 mm
Height: 1390 mm
Wheelbase: 2150 mm
Gauge front/rear: 1400/1395 mm
Cargo space: 3.48 m3
Freight capacity: 800 kg
Fuel tank capacity: 48 l
Voltage: 12 V
Battery capacity :34 Ah
Tyres: 155/70 SRx13
Front suspension: Independent with sway bar. Lower swing arms and hub supports are firmly connected with shock absorbers
Rear suspension: With independent wheels
Weight: 750 kg
Payload: 2 persons + 360 kg
Transmission: Ratio adapted to achieve dynamic characteristics and performanses taking into account the aim and increased payload of the vehicle.
Turning circle: 9,5 m
Steering: Absorbs impact and consists of three parts interconnected by U joints. Jints don't require lubrication
Brake system: 2 circle hydraulic, servo assisted
Front brake (d): disk, 240 mm
Rear brake (d): drum, 186 mm (reinforced)
Engine: 4 cylinder, serial, water-cooled.
Fuel: Super, unleaded
Engine location:front, transversal, No. of cylinders:4 in line
Engine capacity: 903 cm3
Bore x stroke: 86 x 55,5 mm
Compression ratio: 9
Power: 33(45) KW(HP) @ 6000 rpm
Max. moment: 62,8 Nm @ 3000 rpm
Ignition system: electronic, Bosch system
Fuel system: EFI, Bosch system
Max. velocity: 155 km/h
Acceleration 0-100 km/h: 15 sec
Acceleration 0-1000 m: 38 sec
